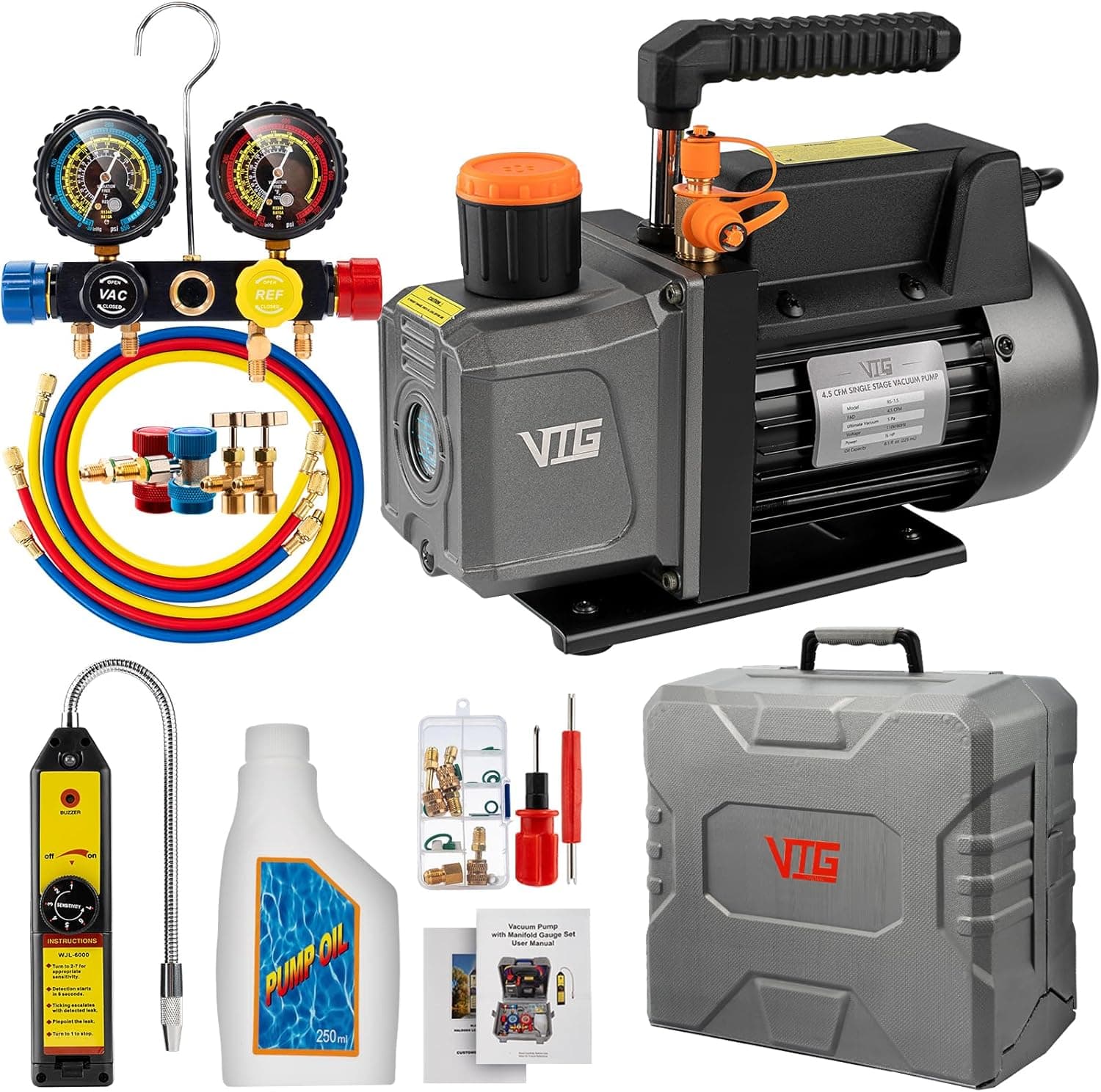

Maintaining peak cooling performance in automotive climate control systems and residential mini-split heat pumps requires precise pressure measurement, reliable evacuation, and robust hose connections. When moisture, ambient air, or non-condensable gases contaminate a closed refrigeration loop, system efficiency drops sharply, leading to acid formation, premature compressor failure, and inadequate cooling. Selecting the Best Ac Hoses And Guages Pump is essential for dedicated DIY enthusiasts, garage mechanics, and homeowners who want professional-grade diagnostic and evacuation capabilities without paying thousands for dedicated commercial recovery stations in 2026.
To assist you in navigating technical specifications like flow rates, ultimate micron levels, manifold block porting, and burst ratings, our team conducted an exhaustive analysis of 10 market-leading models from reputable brands like %brand_list%. Whether you are recharging an older vehicle running R134a, commissioning a modern multi-zone ductless mini-split using R410a, or working on next-generation systems with mildly flammable A2L refrigerants like R1234yf and R454B, this comprehensive guide provides the technical insights you need. If you frequently handle high-pressure workshop gear, you may also appreciate our guide to the best air hoses for heavy-duty pneumatic reliability.
Best Ac Hoses And Guages Pump Buying Guide
Assembling a dependable air conditioning evacuation and charging station involves balancing several critical components: the vacuum pump motor, the manifold gauge block, and the high-pressure charging hoses. Below, we break down the vital engineering factors you must evaluate before choosing the right setup for your workshop or service bench in 2026.
1. Vacuum Pump CFM and Single-Stage vs. Two-Stage Engineering
Cubic Feet per Minute (CFM) measures the volumetric flow rate at which a vacuum pump exhausts atmospheric air from an empty AC line. For automotive systems and compact ductless mini-splits under 2 to 3 tons, a pump rated between 3.0 CFM and 5.0 CFM provides sufficient evacuation speed without creating excessive oil vapor turbulence. A higher CFM rating accelerates the initial roughing vacuum phase, clearing bulk air quickly from longer line sets.
However, ultimate vacuum depth is determined by the pump internal stage architecture rather than CFM alone. Single-stage rotary vane pumps typically achieve ultimate pressures between 75 and 150 microns, which is adequate for standard automotive servicing and routine R134a top-offs. In contrast, two-stage vacuum pumps route exhaust gas through two consecutive rotary vane chambers in series, pulling the system down to ultra-deep vacuum levels below 25 microns (approximately 0.3 Pa). This extreme low pressure is crucial for boiling off trapped liquid moisture at ambient garage temperatures before adding virgin refrigerant.
2. Manifold Gauge Configurations: 3-Way vs. 4-Way Blocks
The manifold gauge block serves as the diagnostic control hub, routing pressures to clear reading dials and directing refrigerant flow during vacuuming and recharging. Traditional 3-way manifolds feature three ports: a blue low-pressure port, a red high-pressure port, and a central yellow service port. With a 3-way block, you must disconnect the yellow hose from the vacuum pump and swap it to the refrigerant bottle after pulling a vacuum, which introduces a risk of atmospheric air bleeding back into the lines if the purge process is mishandled.
Advanced 4-way manifolds incorporate a dedicated black 3/8-inch or 1/4-inch vacuum line alongside the yellow charging hose. This allows you to connect the vacuum pump, refrigerant cylinder, low-side port, and high-side port simultaneously. You can evacuate the entire closed loop, isolate the pump using the manifold valve, and open the refrigerant canister immediately without disconnecting any hoses or introducing atmospheric moisture. For frequent repairs or ductless heat pump installations, a 4-way manifold drastically improves workflow efficiency and reduces contamination risks.
3. Hose Construction, Working Pressure Ratings, and Ball Valves
Charging hoses must withstand immense working pressures, especially when monitoring modern high-pressure blends like R410a and R32. Premium AC hoses utilize multi-layer reinforced rubber or barrier nylon with working pressure ratings of at least 600 to 800 PSI and minimum burst pressure thresholds of 3,000 to 4,000 PSI. Substandard hoses without structural fiber braiding can rupture violently under hot summer operating pressures, presenting severe safety risks from escaping liquid refrigerant.
Hose lengths of 4 to 5 feet provide the optimal balance between physical reach around vehicle engine bays and minimal internal volume. Shorter hoses pull down faster, but longer 60-inch lines offer flexibility when working around elevated outdoor heat pump condensers. Look for hose sets that integrate compact quarter-turn manual ball valves at the connection ends. These shut-off valves allow you to isolate trapped refrigerant at the service port, preventing skin contact with high-pressure fluid during detachment and keeping your lines charged for cleaner diagnostic cycles.
4. Refrigerant Compatibility and Next-Gen A2L Standards
The HVAC and automotive industries are actively transitioning to lower Global Warming Potential (GWP) refrigerants. Traditional setups are built for R134a, R22, and R410a. However, newer vehicles frequently utilize R1234yf, while residential inverter heat pumps increasingly adopt A2L mildly flammable refrigerants such as R32 and R454B. Working with these modern blends requires specific quick couplers with unique thread profiles (such as reverse-threaded left-hand fittings) to prevent accidental cross-contamination.
When handling A2L refrigerants, equipment safety is paramount. Standard rotary vane motors feature open ignition switches that can generate internal electrical sparks during power cycling. Specialized A2L-compatible service kits incorporate sparkless, sealed ignition-proof on/off switches and enclosed brushless or copper-wound motors. These spark-free safety measures prevent catastrophic vapor ignition if a slight refrigerant leak accumulates near the pump casing in a confined workshop setting.
5. Motor Construction, Thermal Protection, and Oil Reservoir Design
Vacuum pumps generate substantial heat during continuous deep-draw operations. Robust aluminum alloy motor housings with prominent cooling fins and integrated high-volume axial cooling fans ensure stable operational temperatures. Pure copper-wound motors offer superior thermal efficiency and torque stability compared to cheaper copper-clad aluminum alternatives, reducing the risk of motor stalling under continuous multi-hour evacuations.
Integrated thermal overload protection is another essential safety feature, automatically cutting power if the motor temperature exceeds safe operating thresholds (typically around 266°F) and resetting once cooled. In addition, transparent oil sight glasses are mandatory for monitoring lubricant cleanliness and level. Mineral-based vacuum pump oil absorbs moisture directly from evacuated lines, causing it to turn cloudy or milky. A wide front-facing sight window and a bottom-mounted angled drain plug enable quick oil changes without messy spills in your garage.
| Feature Specification | Single-Stage Vacuum Kit | Dual-Stage Vacuum Kit | 4-Way Diagnostic Manifold |
|---|---|---|---|
| Ultimate Vacuum Depth | 75 to 150 Microns | Down to 22.5 Microns | System Dependent |
| Flow Rate Range | 3.0 to 4.5 CFM | 5.0+ CFM | N/A (Pressure Block) |
| Hose Working / Burst Pressure | 600 / 3000 PSI | 800 / 4000 PSI | 800 / 4000 PSI |
| Best Real-World Application | DIY Automotive R134a Top-Offs | Mini-Split & Residential HVAC | Professional Multi-Line Servicing |
| Primary Advantage | Lightweight, Budget-Friendly | Superior Moisture Boiling Depth | Simultaneous Vac & Charge Lines |
If you maintain a multifaceted home workshop that handles both mechanical fluid systems and surface refinishing projects, explore our technical comparisons on the best airless sprayers and dedicated systems for protective finishes in our review of airless paint sprayers for metal.
Our Research Methodology & Why You Can Trust Us
Our evaluation process for the Best Ac Hoses And Guages Pump category combines rigorous technical specification analysis, fluid dynamics modeling, and aggregated real-world mechanic performance metrics. We analyzed 10 leading diagnostic and evacuation kits within the %price_range% tier from manufacturers including %brand_list%. Rather than relying purely on marketing claims, our editorial team examined mechanical drawings, rotary vane tolerance sheets, gauge calibration standards (such as Class 1.6 accuracy ratings), and verified teardown analyses.
We systematically cross-reference user feedback patterns from licensed HVAC service technicians, mobile automotive mechanics, and DIY homeowners. Our data-gathering focuses on crucial reliability indicators: long-term motor heat dissipation, hose gasket sealing integrity after repeated connect-disconnect cycles, brass coupler thread durability, and vacuum pump oil retention during transport. We actively verify that included can taps (both self-sealing and puncture-style) align with current EPA snap-valve regulations and automotive manufacturer standards.
To ensure our guides reflect evolving workshop standards, tool advancements, and refrigerant environmental regulations, we continuously update our ratings every September 2026. We maintain complete editorial independence; our rankings are derived exclusively from objective engineering benchmarks, safety compliance, structural build quality, and verified long-term consumer utility.
Final Thoughts
Equipping your home garage with a capable vacuum pump and diagnostic manifold set transforms complex climate control maintenance from an intimidating task into an approachable, safe DIY project. Based on our comprehensive multi-point analysis, here are our definitive recommendations tailored to specific workshop demands and system types in 2026:
- Top Overall & Deepest Vacuum: For homeowners commissioning multi-zone ductless mini-splits or automotive enthusiasts demanding ultra-low moisture evacuation, the VIVOHOME 1/2 HP 5CFM 2 Stage AC Vacuum Pump and 4 stands out as the premium choice. Its dual-stage rotary vane pump achieves an exceptional 22.5-micron ultimate vacuum, paired with a rugged 4-way manifold and 800 PSI working pressure hoses.
- Best All-Around Value for DIY Mechanics: The OMT 4.5 CFM AC Vacuum Pump and Gauge Set for R134a and the VIVOHOME 1/3 HP 5CFM 1 Stage AC Vacuum Pump and 4 deliver an outstanding balance of fast 4.5 to 5.0 CFM evacuation speeds, complete 4-way diagnostic blocks, and included electronic leak detectors right out of the box.
- Best Budget-Friendly Automotive Kit: If your primary goal is diagnosing and recharging standard automotive R134a systems on a sensible budget, the XtremepowerUS 3CFM 1/4HP Vacuum Pump HVAC R134a provides proven reliability, durable aluminum casing, and essential accessories for straightforward home repairs.
- Best for Next-Gen A2L & R1234yf Refrigerants: For newer vehicles and modern residential units utilizing mildly flammable blends, the sparkless OMT 4 CFM AC Vacuum Pump and Gauge Set for R454B offers critical ignition-proof switch protection alongside broad compatibility with R454B, R1234yf, R32, and R410a.
- Best Heavy-Duty Diagnostic Manifold: For technicians and advanced DIYers who already own a pump and need upgraded high-visibility gauges, the Upgrade 42201 Test & Charging Manifold with 3-1/8" delivers expansive 80mm anti-vibration dials and premium hoses with compact ball valves.
Before beginning any evacuation or charging procedure, always ensure your hoses are securely tightened, check the vacuum pump oil level through the sight glass, and wear protective gloves and eyewear to safeguard against pressurized refrigerant exposure.
Frequently Asked Questions
How many CFM do I need for automotive and residential mini-split AC systems?
For standard passenger vehicles, light trucks, and single-zone residential mini-split systems up to 36,000 BTU, a vacuum pump rated between 3.0 CFM and 5.0 CFM is ideal. Pumps in this range evacuate atmospheric air rapidly within 15 to 30 minutes without causing excessive oil misting. Commercial buildings or larger multi-ton central ducted systems benefit from 6.0 CFM to 10.0 CFM commercial units to minimize total evacuation time over long copper line sets.
What is the advantage of a 4-way manifold gauge over a traditional 3-way set?
A 4-way manifold includes a dedicated fourth port connected directly to the vacuum pump, separate from the refrigerant charging line. This design allows you to pull a deep vacuum and immediately charge virgin refrigerant without disconnecting or swapping hoses. By eliminating hose disconnections during the service cycle, you prevent ambient air and moisture from re-entering the evacuated system, ensuring higher purity and faster operation.
Why is pulling a deep vacuum below 500 microns necessary before recharging?
Pulling a deep vacuum lowers the internal boiling point of water trapped inside the copper lines and evaporator coils. At atmospheric pressure, water boils at 212°F, but under a deep vacuum below 500 microns, moisture vaporizes at room temperature and is exhausted by the pump. Leaving moisture inside the system leads to hydrolytic degradation of POE or PAG compressor lubricants, generating corrosive acids that destroy compressor motor windings.
How often should I change the oil in my AC vacuum pump?
Vacuum pump oil should ideally be changed after every major HVAC installation or whenever the oil in the sight glass appears cloudy, discolored, or milky. Because vacuum pump oil is hygroscopic, it absorbs moisture evacuated from AC systems. Contaminated oil prevents the rotary vanes from reaching deep micron levels and can cause internal corrosion. Always drain the oil while the pump is warm to ensure complete fluid evacuation.
What personal protective equipment is required when handling high-pressure AC lines?
Handling pressurized refrigerants requires heavy-duty chemical-resistant gloves and ANSI-certified safety glasses or face shields. Escaping liquid refrigerant instantly vaporizes upon contact with atmospheric pressure, causing immediate cryogenic freeze burns to exposed skin or eyes. Maintaining heavy-duty workshop safety practices, similar to those outlined in our overview of high-pressure hose maintenance, ensures a clean and injury-free service workspace.
