DIY Arrow Saw – Carbon Arrow Shafts Saw Cutter Kit with Dial

The DIY Arrow Saw Kit is a 3D-printed workstation built for archery hobbyists who assemble and tune their own carbon arrows at home. It handles the core tasks of arrow preparation, combining length cutting, straightness inspection, spine indexing, and end-face squaring into a single setup. This design eliminates the need for separate measuring jigs and rotary tools on your bench.

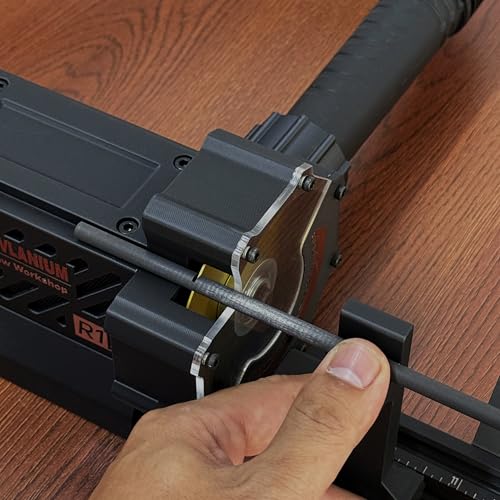

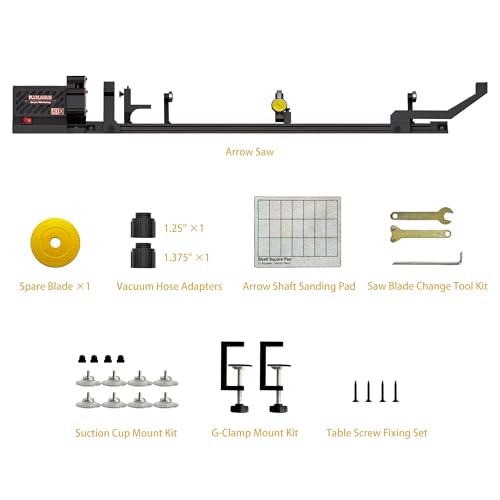

For sizing shafts, the unit supports arrow lengths between 11 and 33 inches. The cutting assembly uses an optimized drive unit paired with an included diamond-coated saw blade, plus an extra spare blade in the box to handle repeated trimming tasks. After cutting, you can clean up the edges using the 21 included sandpaper sheets designed for end-face correction.

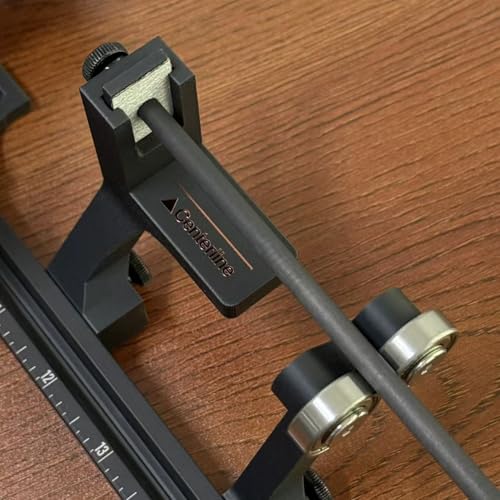

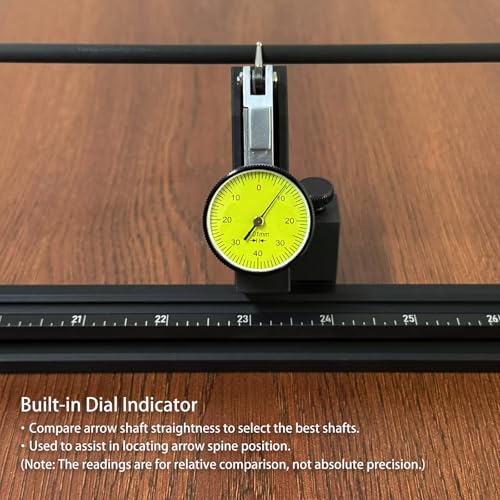

Beyond cutting, the integrated inspection system includes free-spinning bearings and a lever-style dial gauge. Placing an arrow on the bearings allows you to spin the shaft freely to spot visual wobble and verify tip-to-shaft coaxial alignment. As the arrow rotates, dial gauge readouts give a precise comparison of straightness and help locate the arrow spine.

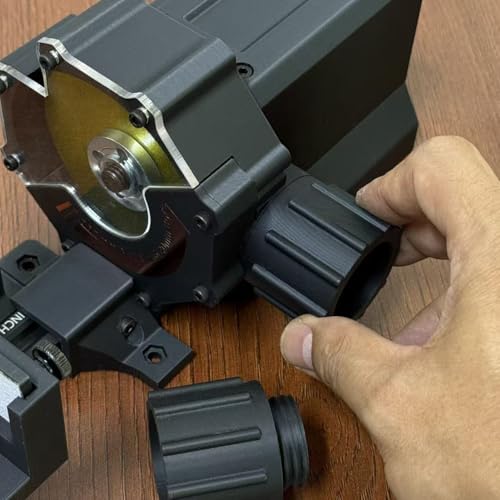

Carbon dust management and workstation stability are addressed through practical hardware choices. The saw includes 1.25-inch and 1.375-inch ports to connect standard vacuum cleaners directly at the cutting point. For securing the unit to your workspace, you can choose between a suction cup for smooth countertops, a G-clamp, or direct screw mounting.

As a 3D-printed tool, it prioritizes multifunctionality for DIY use rather than metal cast construction, and it is limited strictly to shafts within its 11 to 33-inch span. Verdict: This all-in-one cutter kit is a capable choice for DIY archers wanting built-in spine indexing, straightness verification, and dust-controlled cutting for 11 to 33-inch carbon shafts.

• Supported Arrow Lengths: 11 to 33 inches
• Dust Port Sizes: 1.25 inches and 1.375 inches
• Mounting Methods: Suction cup, G-clamp, screw mount
• Included Abrasives: 21 sheets of sandpaper
• Blade Type: Diamond-coated saw blade (includes extra blade)
• Build Type: 3D printed

A great fit if you:

• Build and maintain your own carbon arrows ranging from 11 to 33 inches.
• Want to check shaft straightness, tip alignment, and spine location on the same tool.
• Need a dust-controlled setup compatible with 1.25-inch or 1.375-inch vacuum hoses.
• Value flexible desktop mounting via clamps, suction, or screws.

Consider something else if you:

• Need to cut arrow shafts shorter than 11 inches or longer than 33 inches.
• Prefer all-metal workshop tools over 3D-printed equipment.

What arrow lengths can this saw cut?
The tool accommodates arrow shaft lengths from 11 inches up to 33 inches.

How does the inspection system work?
The unit features built-in bearings that let you freely rotate the shaft to check tip alignment and visual wobble. A lever-style dial gauge measures straightness variations and tracks reading changes to help you identify the arrow spine.

What vacuum sizes fit the dust collection ports?
The tool includes integrated ports sized at 1.25 inches and 1.375 inches to connect with standard vacuum cleaners.

How do you mount the saw to a workbench?
It supports three mounting methods: a suction cup for smooth flat surfaces, a G-clamp, or direct screw fastening.
