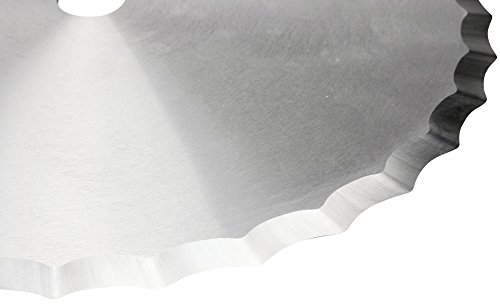

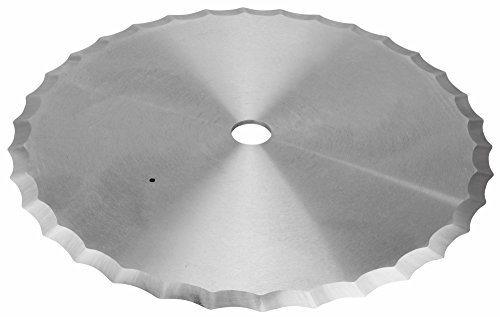

Hose Cut Off 10" Scalloped Blade fits Toledo Curtis 15960 AEROquip SC1709

The Toledo Hydraulic 10-inch Scalloped Cut Off Blade is a replacement cutting wheel engineered to slice through heavy-duty industrial hoses. It is built for operators who need a dependable blade to cut reinforced lines cleanly and efficiently on compatible shop cut off saws.

Constructed from M-2 High Speed Steel, this blade provides high wear resistance, exceptional toughness, and strong cutting force under extreme hardness. Its scalloped design is rated to slice through hoses with up to a 2-inch inner diameter, easily handling nylon reinforcement as well as single, two, four, and six wire braid reinforced lines.

In terms of sizing and fit, the blade features an outer diameter of 10 inches, a .095-inch thickness, and a 3/4-inch inner diameter arbor. It operates at speeds up to 3500 RPM and is compatible with machines like the Toledo Curtis 15960 and 24248, Aeroquip SC1709 and FT1101-1, Dayco SE170, Imperial Eastman 200-T-4, Parker 24248, and Stratoflex models.

Keep in mind that this blade requires a machine with a matching 3/4-inch arbor and a top speed that does not exceed 3500 RPM. Additionally, it is limited to hoses with a maximum inner diameter of 2 inches, so larger industrial lines will require different equipment.

Verdict: This blade is a solid choice for workshops needing a tough M-2 High Speed Steel blade to cut multi-wire braid hose up to 2 inches on standard compatible saw units.

• Outer Diameter: 10 inches
• Inner Diameter (Arbor): 3/4 inch
• Thickness: .095 inches
• Material: M-2 High Speed Steel
• Max Operating Speed: 3500 RPM
• Max Hose Capacity: 2-inch ID (Nylon, 1, 2, 4, and 6 wire braid)
• Compatibility: Toledo Curtis 15960, 24248; Aeroquip SC1709, FT1101-1; Dayco SE170; Imperial Eastman 200-T-4; Parker 24248; Stratoflex

A great fit if you:

• Need to cut hydraulic hoses reinforced with up to six wire braids.
• Own a compatible saw from Toledo Curtis, Aeroquip, Dayco, Imperial Eastman, Parker, or Stratoflex.
• Operate a cut off machine with a 3/4-inch arbor and a speed rating up to 3500 RPM.

Consider something else if you:

• Need to cut hoses with an inner diameter larger than 2 inches.
• Have a cut off saw requiring an arbor size other than 3/4 inch.

What types of hose can this blade cut?
It is rated to cut nylon reinforced hoses as well as single, two, four, and six wire braid reinforced hoses up to a 2-inch inner diameter.

What are the physical dimensions of the blade?
The blade has a 10-inch outer diameter, a 3/4-inch arbor hole (inner diameter), and a thickness of .095 inches.

What is the maximum operating speed for this blade?
The maximum rated speed is 3500 RPM.
