JET 10-Inch Deluxe XACTA Table Saw, 30-Inch Rip, 5 HP, 230V 1Ph

The Deluxe XACTA 10-Inch Table Saw is a heavy-duty stationary machine built for demanding woodworking setups. Powered by a 5 HP, 230V single-phase motor, it delivers robust cutting capacity alongside a commercial 30-inch XACTA fence II featuring a reliable T-square design. It is engineered for woodworkers who need a solid, high-powered workspace for accurate ripping and crosscutting.

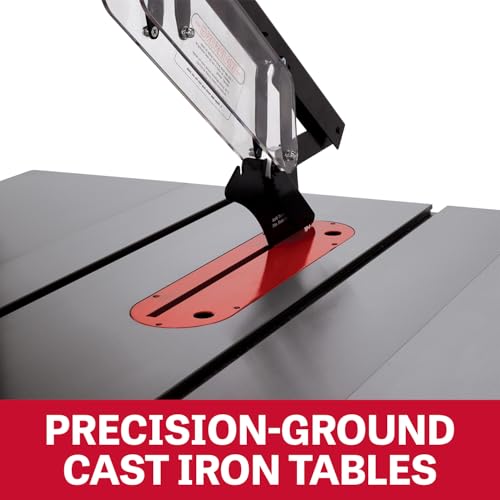

Material support and drive efficiency stand out on this model. It includes 11-inch left and right cast iron extension wings, providing the largest table surface in its class for handling broader sheet goods and long boards. Power transfer relies on a Poly-V drive belt system, engineered to deliver quiet and efficient operation while cutting.

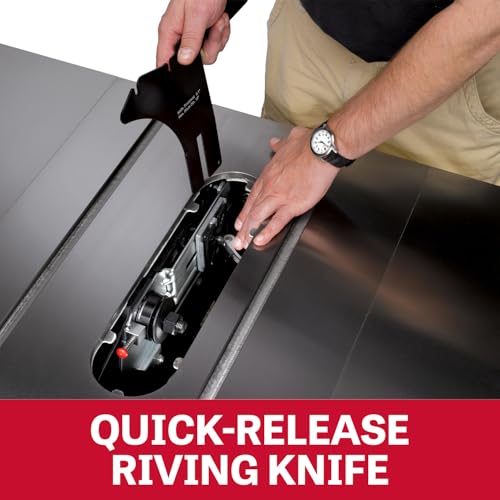

Workflow convenience and user protection are built into several key components. Blade changes are straightforward thanks to a dedicated push-button arbor lock. For safer cuts, the tool features a quick-release riving knife to minimize binding and kickback risks, an independent leaf safety guard that maintains blade coverage even during a 45-degree tilt, and an easy-to-reach rail-mounted magnetic switch with overload protection.

Before deciding, consider your workshop setup. The machine requires a 230V power connection, meaning standard 120V household outlets will not work. Additionally, with its dual 11-inch cast iron wings and stationary design, it requires dedicated floor space in your shop and offers a fixed 30-inch maximum rip capacity.

Verdict: This table saw is an excellent choice for serious woodworkers with 230V power who want high-output 5 HP cutting performance, expansive cast iron table space, and reliable safety controls.

• Blade Diameter: 10-inch
• Motor Power: 5 HP
• Voltage: 230V 1Ph
• Rip Capacity: 30-inch

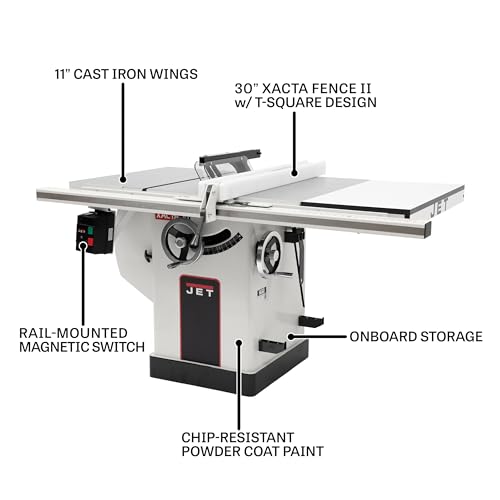

• Fence Type: Commercial XACTA fence II (T-square design)
• Extension Wings: 11-inch left and right cast iron wings
• Drive System: Poly-V drive belt
• Safety Guard Tilt: Up to 45-degree tilt protection

A great fit if you:

• Have access to a 230V single-phase power supply in your workshop.
• Need a powerful 5 HP motor for heavy ripping and continuous wood cutting.
• Want a wide cast iron workspace with 11-inch extension wings.
• Value rapid blade swaps with a push-button arbor lock.

Consider something else if you:

• Only have standard 120V wall outlets available.
• Need a rip capacity wider than 30 inches.
• Work in a compact garage where a large cast iron stationary saw cannot fit.

What kind of electrical power does this saw require?
It runs on a 230V single-phase electrical supply to operate its 5 HP motor.

How does the safety guard handle bevel cuts?
It includes an independent leaf safety guard that keeps the operator protected from the blade even when tilted at a 45-degree angle.

What system is used to change saw blades quickly?
The saw features a push-button arbor lock that simplifies and speeds up blade changes.
