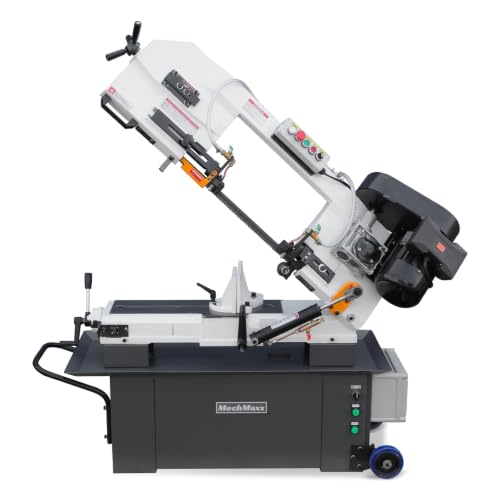

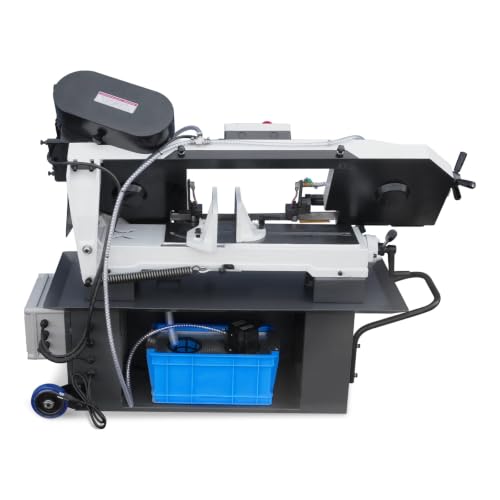

Mechmaxx 9 Inch Horizontal Metal Cutting Band Saw, 4-Speed Adjustable, 1.5HP 115V/230V

The Mechmaxx 9-Inch Horizontal Metal Cutting Band Saw is a stationary fabrication machine built for cutting bar stock, tubing, and structural shapes. Powered by a 1.5HP single-phase motor, it delivers steady torque for metalworking shops, job sites, and maintenance facilities that handle raw stock up to 9 inches round or 7 by 12 inches rectangular at 0 degrees.

A notable strength of this saw is its versatility across various materials. It offers four distinct blade speeds ranging from 105 to 377 FPM, allowing you to match the speed to steel, stainless steel, aluminum, brass, or plastic. The built-in hydraulic downfeed system provides steady, hands-off cutting pressure to reduce blade wear, while the integrated coolant pump and nozzles wash away heat to prolong the life of the 104.5-inch industrial blade.

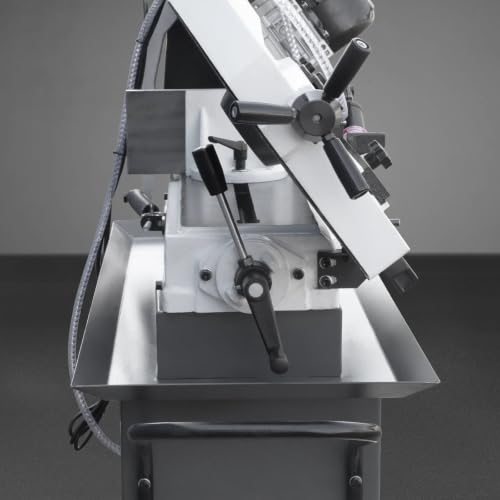

For angled cuts, the machine features a swivel vise plate that adjusts from 0 to 45 degrees, providing a 6-inch round and 5-by-6-inch rectangular capacity on mitered joints. Despite its industrial capacity, the machine produces a maximum noise level of 80dB, making it manageable for indoor workshops. It comes pre-wired for 115V wall outlets but can be converted to 230V if your shop uses higher voltage lines.

The main trade-off comes down to bulk and placement. With a net weight of over 573 pounds and a footprint spanning nearly 63 by 22 inches, this is a dedicated stationary tool that requires dedicated shop space and equipment to move into place. Additionally, the listing does not mention whether wheels or a rolling base are included.

Verdict: The Mechmaxx 9-Inch Metal Cutting Band Saw is a solid choice for metal fabricators and fabrication shops that need large stock capacity, controlled hydraulic feeding, and integrated cooling. Its dual-voltage motor and 4-speed versatility suit demanding cutting jobs across diverse metal types.

• Motor: 1.5 HP, 1-phase, dual voltage (115V/230V, pre-wired 115V)
• Blade Speeds: 4 speeds (105, 197, 289, 377 FPM @ 60Hz)
• Blade Dimensions: 1 x 0.035 x 104.5 inches (27 x 0.7 x 2655 mm)
• Cutting Capacity (0°): 9 in round (230 mm), 7 x 12 in rectangular (178 x 305 mm)
• Cutting Capacity (45°): 6 in round (150 mm), 5 x 6 in rectangular (127 x 150 mm)
• Miter Angle Range: 0° to 45°
• Max Noise Level: 80 dB
• Overall Dimensions: 62.99 x 21.65 x 47.24 inches (1600 x 550 x 1200 mm)
• Net Weight: 573.20 lbs (260 kg)
• Gross Weight: 705.48 lbs (320 kg)

A great fit if you:

• Need to cut thick metal stock up to 9 inches round or 7x12 inches rectangular.
• Fabricate with mixed materials including steel, aluminum, brass, and plastic.
• Require hydraulic downfeed control and built-in coolant for clean, sustained cuts.
• Want a dual-voltage motor that runs on standard 115V or 230V electrical circuits.

Consider something else if you:

• Need a portable saw that one person can transport between light jobs.
• Have a tight workspace that cannot accommodate a 573-pound stationary unit.

What are the speed options on this band saw?
The saw features 4 selectable blade speeds: 105, 197, 289, and 377 feet per minute at 60Hz.

What is the maximum cut size at a 45-degree angle?
At 45 degrees, the saw can handle up to 6-inch round stock or 5 by 6-inch rectangular stock.

What electrical supply does the motor need?
The 1.5HP single-phase motor supports dual voltage (115V or 230V) and arrives pre-wired for standard 115V outlets.

What size replacement blade does the machine take?
It uses industrial band saw blades measuring 1 inch wide, 0.035 inches thick, and 104.5 inches long.
