Highlights
- This saw is made by Thomas Flinn of Sheffield England the last traditional saw and plane maker in the UK.
- Saw has a 8 inch long x 1-5/8 inch wide x 0.022 inch thick saw plate. Kerf is 0.028 inches wide.
- Saw plate has a .500 inch wide x 0.160 inch thick solid brass rolled back which stiffens the blade and adds weight for smooth and accurate cutting.
- The solid walnut handle is 1-1/4 inches in diameter and 5 inch long. Handle had solid brass ferrule.

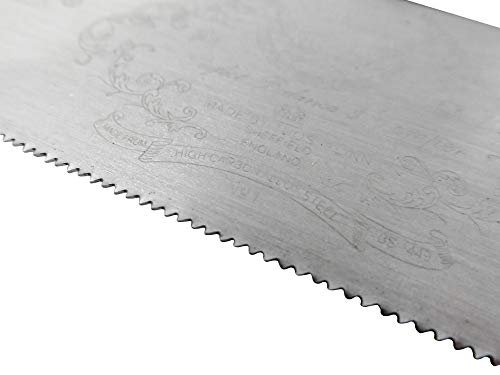

- The saw plate is made from high carbon allow steel for durability and ease of sharpening. Comes with 20 TPI. Teeth can be resharpened.
Why You'll Love It
- Rolled brass back adds blade rigidity and cutting weight for controlled, accurate joinery work
- High carbon alloy steel blade comes with 20 TPI and can be resharpened over time
- Turned walnut handle with a solid brass ferrule provides a traditional straight gent-style grip
- Crafted in Sheffield, England by traditional saw maker Thomas Flinn
- Narrow 0.028-inch kerf helps you make precise, fine cuts with minimal wasted material
Pros
- +Resharpenable high carbon steel blade
- +Solid rolled brass back adds stiffness
- +Turned walnut handle with brass ferrule
- +Traditional Sheffield, England manufacturing
- +Fine 20 TPI configuration
Cons
- -Straight gent handle lacks a pistol-grip hold
- -Requires manual maintenance to sharpen the teeth
- -Small 8-inch blade limited to fine joinery
Detailed Review
The Thomas Flinn Pax 8 Inch Gent Dovetail Saw is a dedicated joinery tool made in Sheffield, England for woodworkers who need precise, controlled cuts. Built around an 8-inch high carbon alloy steel plate, it provides a fine cutting profile tailored for detail tasks like dovetails and small joints.
A key feature of this saw is the 0.500-inch wide by 0.160-inch thick solid rolled brass back. This heavy brass spine stiffens the 0.022-inch thick blade to prevent flexing while adding balanced weight to assist your cutting stroke. With a fine 20 TPI tooth count and a thin 0.028-inch kerf, the tool leaves a clean, narrow line. Because the teeth are made from high carbon alloy steel, you can resharpen them directly instead of replacing the blade when it dulls.
The saw uses a classic gent-style handle turned from solid walnut, measuring 5 inches long and 1-1/4 inches in diameter, reinforced by a solid brass ferrule. This straight handle design differs from standard pistol-grip backsaws, requiring an inline grip that some users may find less familiar. Additionally, the 1-5/8-inch plate depth naturally limits the maximum depth of cut you can make.
Verdict: This Thomas Flinn gent saw is a solid, traditional choice for woodworkers seeking a fine 20 TPI tool for delicate dovetails and small joinery. Its resharpenable plate and stiff brass back make it a dependable addition to any hand tool workshop.
Specifications
- Blade Length: 8 inches
- Blade Width: 1-5/8 inches
- Blade Thickness: 0.022 inches
- Kerf Width: 0.028 inches
- Tooth Count: 20 TPI (resharpenable)
- Blade Material: High carbon alloy steel
- Back Material: Solid rolled brass (0.500 wide x 0.160 thick)
- Handle Material: Solid walnut with brass ferrule
- Handle Dimensions: 5 inches long, 1-1/4 inches diameter
- Origin: Sheffield, England
Who Should Buy It
A great fit if you:
- Cut fine dovetails and require a thin 0.028-inch kerf
- Prefer traditional straight gent-style turned wooden handles
- Want a saw blade you can resharpen yourself over time
- Value UK-made hand tools with solid brass back reinforcement
Consider something else if you:
- Prefer a standard pistol-grip handle for joinery cuts
- Need a deep cutting depth beyond 1-5/8 inches
- Do not want to maintain and sharpen saw teeth manually
FAQ
Can the blade on this saw be resharpened?
Yes. The blade is made from high carbon alloy steel and the 20 TPI teeth can be resharpened.
What are the handle dimensions and materials?
The handle is made from solid walnut with a solid brass ferrule, measuring 5 inches in length and 1-1/4 inches in diameter.
What is the cut width of this saw?
The saw plate is 0.022 inches thick and produces a cutting kerf of 0.028 inches.
Photos
Product Specs
| Specification | Details |
|---|---|
| Power Source | Manual |
| Other Special Features of the Product | Solid rolled brass back, high carbon allow steel blade, and made by a traditional saw maker in the UK |
| Number of Teeth | 20 |
| Blade Shape | Rectangular |
| Surface Recommendation | Brass |
| Item Dimensions L x W x H | 13"L x 3"W x 1"H |
| Blade Length | 8 inches |
| Blade Material | High Carbon Steel |
| Handle Material | Walnut |
| Color | Gold |
| Brand Name | Pax / Taytools |
| Included Components | Bare Tool |
| Model Number | PG8 |
| Unit Count | 1 Count |
| Number of Items | 1 |
| UPC | 796029773239 |
| Manufacturer | Thomas Flinn and Company LTD |
| Manufacturer Part Number | PG8 |
| Best Sellers Rank | #349,994 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #453 in Handsaws |
| ASIN | B08128RSPG |
| Customer Reviews | 4.5 4.5 out of 5 stars (31) 4.5 out of 5 stars |
| Brand | Pax / Taytools |
