AEROPRO Tools R500 LVLP Air Spray Gun,Professional Automotive Paint Sprayer

The AEROPRO Tools R500 LVLP Air Spray Gun (also designated as model A610) is a low-volume, low-pressure automotive paint sprayer designed for users who want a smooth finish while keeping overspray to a minimum. By running on 3.0 to 3.9 cfm of air consumption at 2.0 to 3.5 bar of operating pressure, it provides a fine atomized mist without demanding the massive airflow requirements of typical HVLP systems.

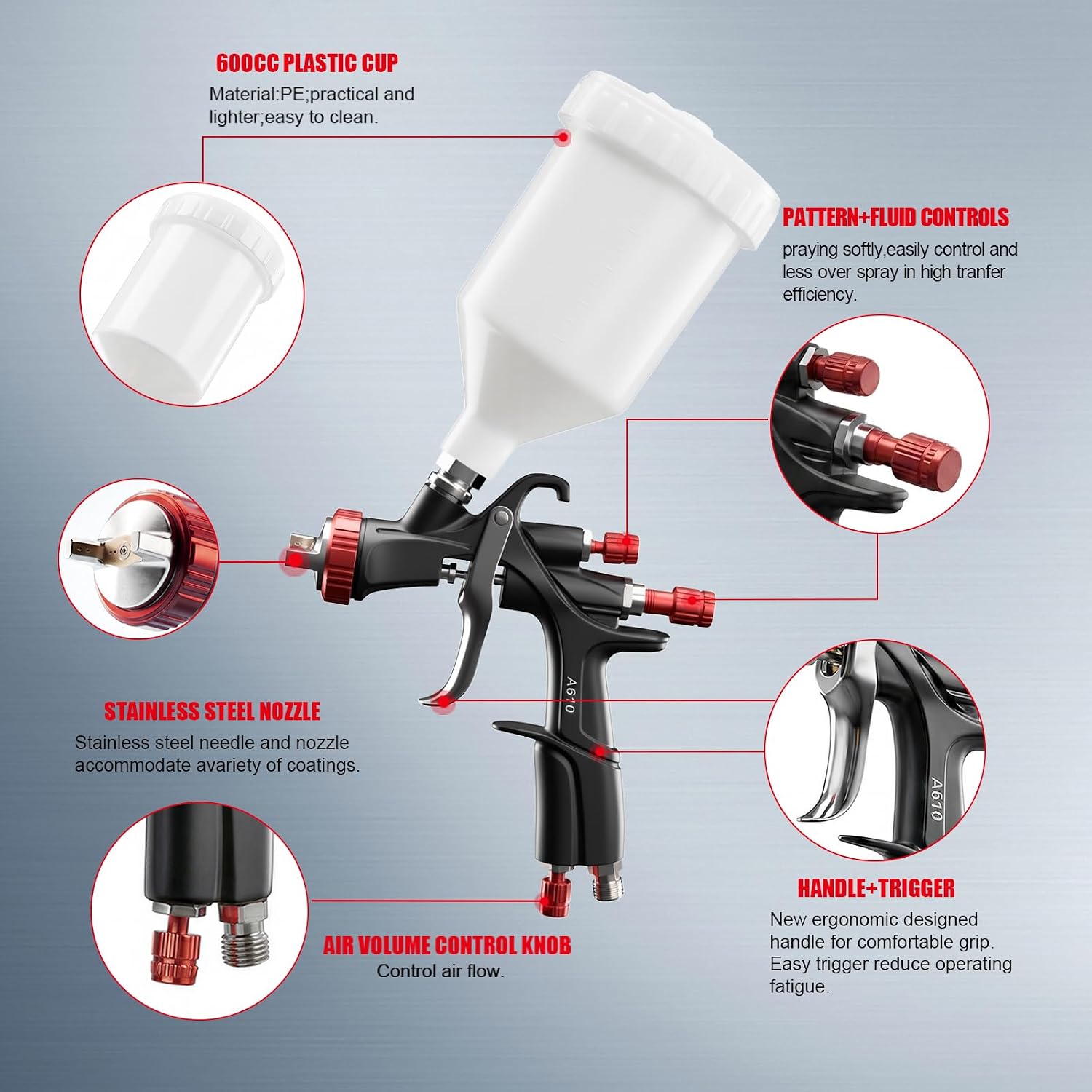

Efficiency and versatility drive the design of this sprayer. It achieves up to a 65 percent paint utilization rate and delivers a pattern width between 180mm and 280mm to cover surfaces quickly. The kit includes three distinct stainless steel nozzle and needle sets (1.3mm, 1.5mm, and 1.7mm), allowing you to spray everything from thin clear coats to thicker topcoats. The trigger features two distinct gears: the first stage blows air for dust clearing, while the second stage releases paint with reduced pull fatigue.

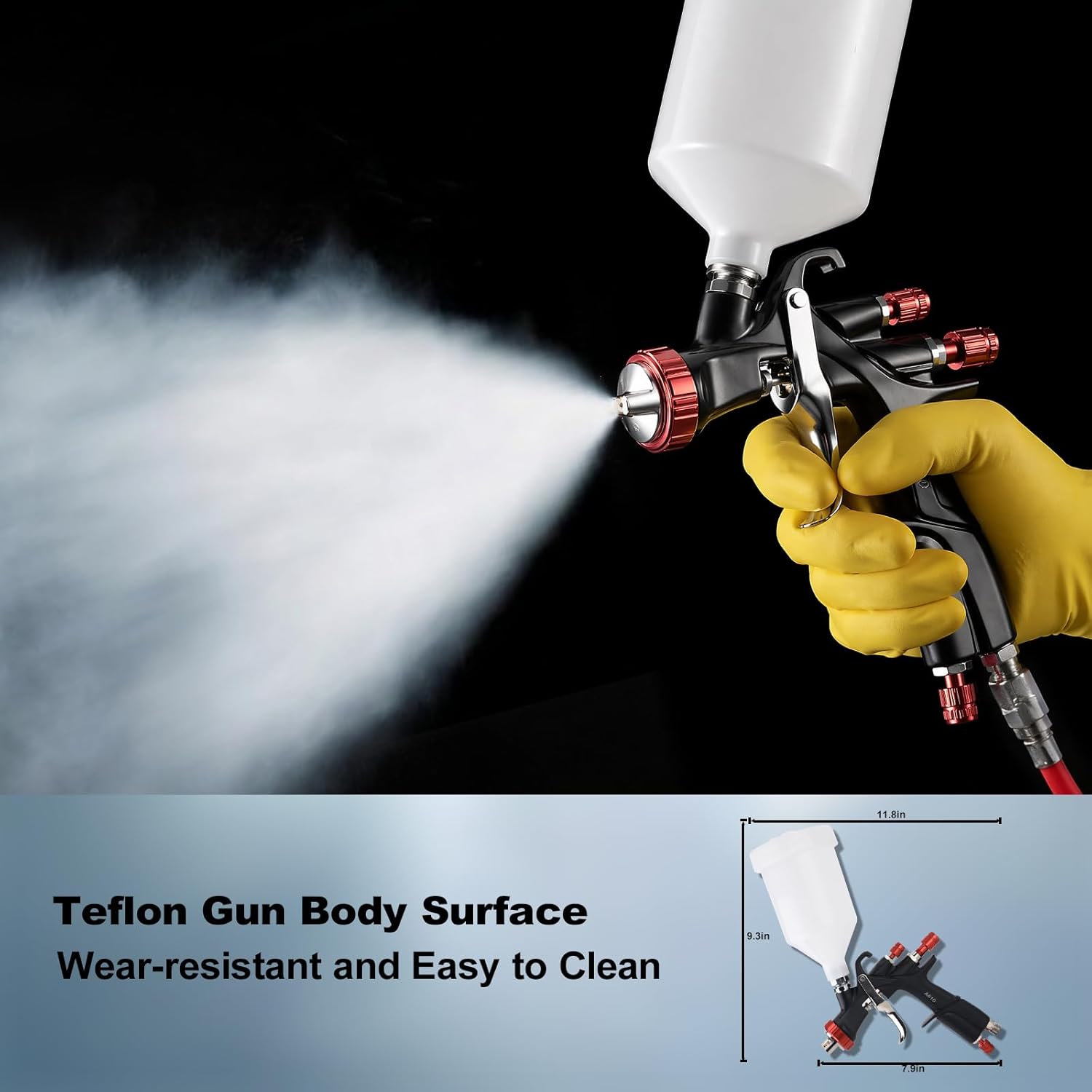

Durability is reinforced throughout the construction. The gun body features a wear-resistant Teflon coating that repels dirt, and the housing can handle up to four times standard working pressure. Paint is held in a 600cc corrosion-resistant PE material cup that cleans up easily with the included maintenance tools. The complete package also supplies an air regulator, air hose connector, paint cup adaptor, and wrench.

As an air-powered tool, it requires a dedicated pneumatic setup with proper pressure regulation to function. The 600cc cup capacity is ideal for manageable vehicle panels and medium projects, though very large continuous jobs will require stopping to refill the reservoir.

Verdict: The AEROPRO R500 is a reliable choice for automotive enthusiasts and painters looking for an efficient LVLP gun with minimal overspray. With three included nozzle sizes and a practical two-stage trigger, it provides solid flexibility for basecoats, clear coats, and general finishing.

• Model: R500 (A610)
• Spray Type: LVLP (Low Volume Low Pressure)
• Air Consumption: 3.0-3.9 cfm
• Operating Pressure: 2.0-3.5 bar
• Spray Pattern Width: 180-280 mm
• Included Nozzle Sizes: 1.3mm, 1.5mm, 1.7mm
• Paint Cup Capacity: 600cc
• Body Coating: Teflon
• Nozzle/Needle Material: Stainless steel
• Cup Material: PE (polyethylene)
• Paint Utilization Rate: Up to 65%

A great fit if you:

• Need an LVLP spray gun that operates on moderate air compressor outputs between 3.0 and 3.9 cfm.
• Want multiple nozzle sizes (1.3mm, 1.5mm, 1.7mm) to switch between clear varnish and topcoats.
• Prefer a two-stage trigger that can blow away dust prior to spraying paint.
• Value an easy-to-clean Teflon finish and corrosion-resistant PE paint cup.

Consider something else if you:

• Do not own or plan to use an air compressor setup.
• Require a large industrial paint reservoir exceeding 600cc for non-stop spraying.

What accessories come in the box?

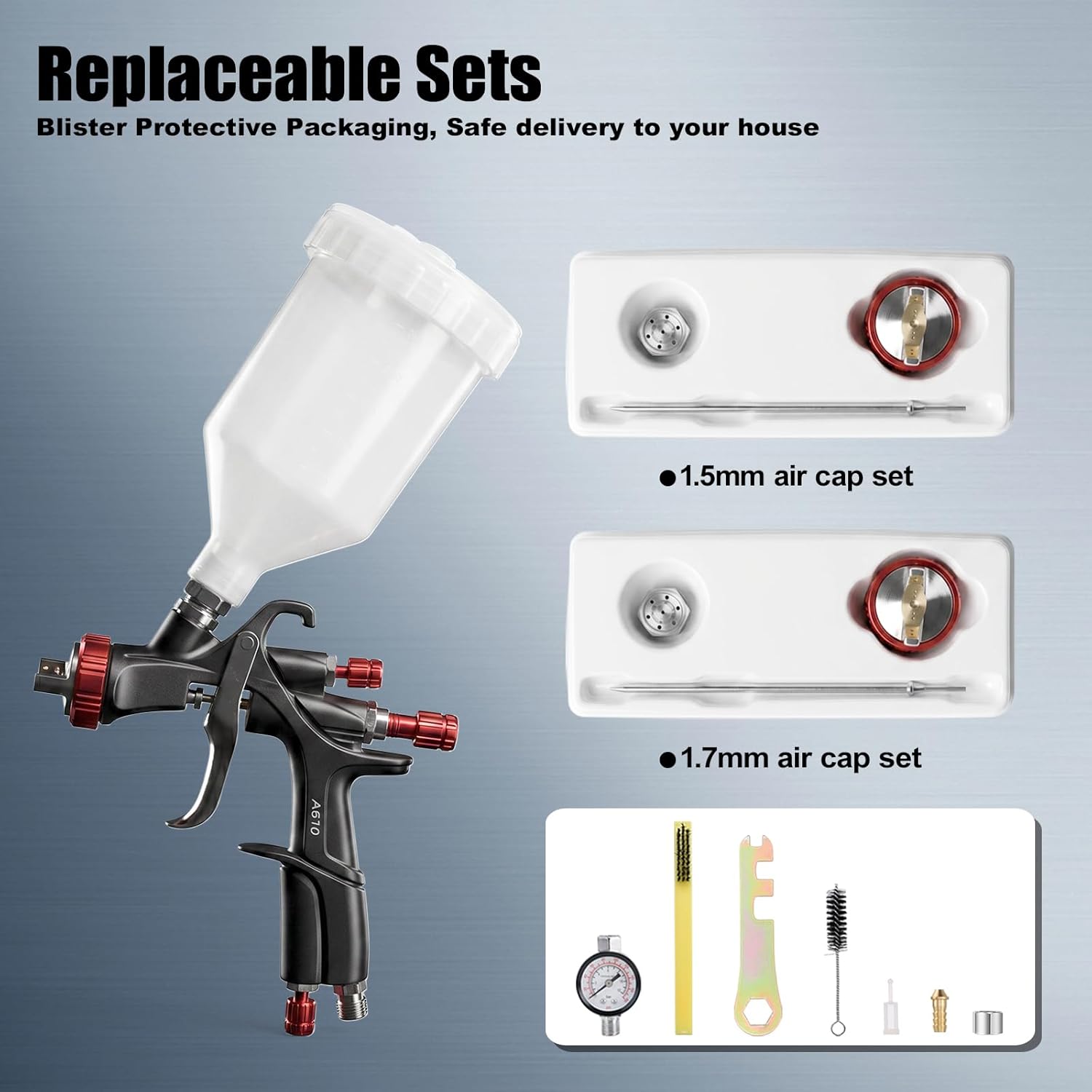

The package includes the A610 spray gun, 1.3mm, 1.5mm, and 1.7mm nozzle sets, an air regulator, an air hose connector, a paint cup adaptor, a wrench, and a cleaning kit.

What are the air requirements to run this spray gun?
The R500 operates at a pressure range of 2.0 to 3.5 bar and consumes between 3.0 and 3.9 cfm of air.

How does the two-gear trigger work?
The first pull stage activates air only to clear dust from your working surface, while the second stage begins spraying paint.

What is the size of the paint cup and spray pattern?
The corrosion-resistant PE cup holds up to 600cc of paint, and the spray pattern width adjusts between 180mm and 280mm.
