BDZMC Mini HVLP Touch Up Spray Gun with 0.8 mm Nozzle (1.0)

The BDZMC Mini HVLP Touch Up Spray Gun is a compact, gravity-fed paint applicator built for detail work, spot repairs, and small-scale coating jobs. It provides hobbyists and DIY painters with a controlled spraying option for refinishing car panels, furniture surfaces, wall spots, and parts made of iron, aluminum, or plastic.

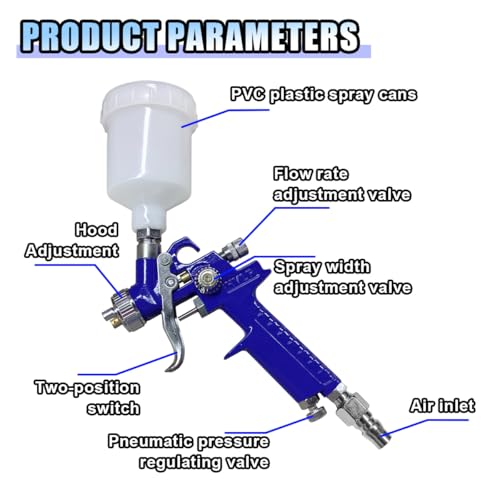

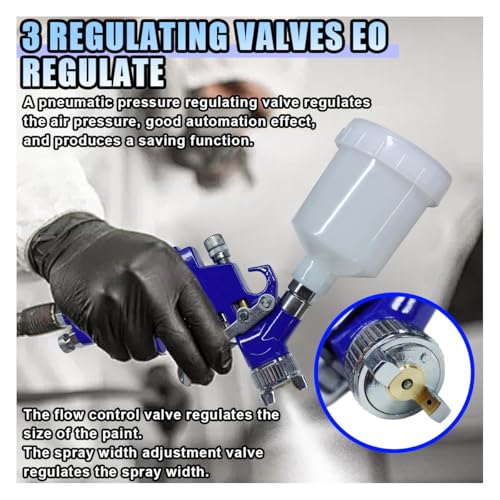

Output control is managed through three dedicated adjustment valves covering the spray pattern, fluid flow, and incoming air pressure. It operates at a working pressure of 3.0 bar (43 PSI) with a spraying distance of 160-250mm. The nozzle cover rotates a full 360 degrees, allowing you to quickly change spray angles without tilting the entire tool awkwardly.

Durability comes from a solid combination of metal components, including an aluminum alloy body, a brass nozzle and cover, and a stainless steel needle. The top-mounted 125cc cup uses gravity feeding to draw material down effectively, which cuts down on leftover paint residue and simplifies cleaning when you disassemble the parts.

Because of its compact 125cc cup capacity and 9 cfm air consumption requirement, this tool is strictly geared toward small projects and localized touch-ups rather than broad coverage. Note that while the product title mentions a 0.8 mm nozzle, the specifications indicate a 1 mm calibre, so verify your exact fluid tip requirements before beginning a project.

Verdict: The BDZMC Mini HVLP Spray Gun is a practical, cost-effective tool for anyone needing precise control on localized painting and repair tasks. It is best suited for DIYers working on automotive spot repairs, furniture refinishing, and small metal or plastic surfaces.

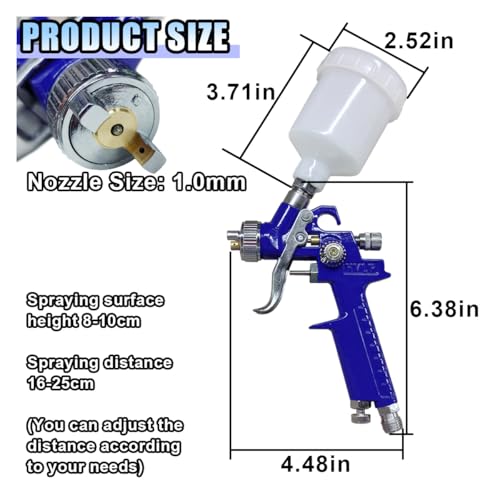

• Feeding Method: Gravity
• Cup Capacity: 125cc
• Calibre / Nozzle Size: 1 mm (title lists 0.8 mm)
• Air Inlet: 1/4 inch
• Working Air Pressure: 3.0 bar (43 PSI)
• Air Consumption: 9 cfm
• Spraying Distance: 160-250mm
• Body Material: Aluminum alloy
• Nozzle & Cover Material: Brass
• Needle Material: Stainless steel

A great fit if you:

• Need to do small touch-up painting on automotive panels or primers
• Work on compact furniture or craft projects made of iron, aluminum, or plastic
• Want a compact gun with adjustable flow, air, and pattern valves
• Have an air compressor capable of delivering at least 9 cfm at 43 PSI

Consider something else if you:

• Plan to paint entire vehicles or large walls that require high-capacity paint cups
• Need a guaranteed, strictly documented fluid nozzle size without title variations

What materials is this spray gun made from?
The spray gun body is constructed from aluminum alloy, the nozzle and nozzle cover are made of brass, and the internal needle is stainless steel.

What are the air supply requirements?
The gun features a 1/4-inch air inlet and requires an operating air pressure of 3.0 bar (43 PSI) with an air consumption rate of 9 cfm.

What types of surfaces can this spray gun paint?
It is designed for small painting projects including automotive primer, wall painting, furniture surfaces, iron plate, aluminum, and plastic.

What is the capacity of the paint cup?
The included gravity-feed paint cup holds 125cc of material and is designed for easy disassembly and cleaning.
