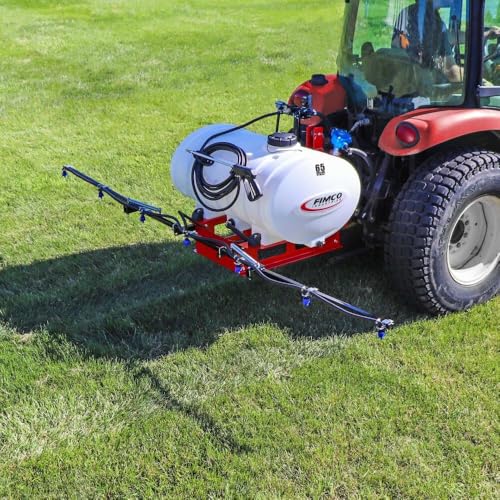

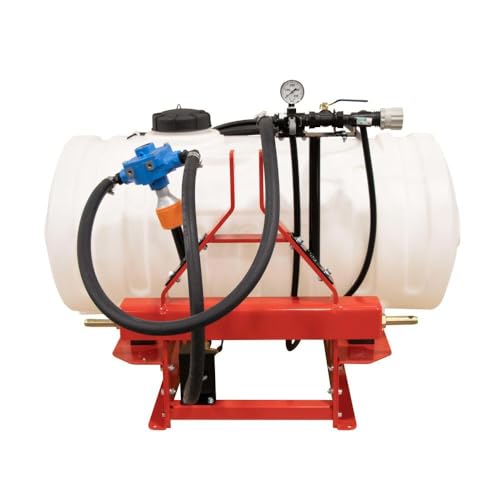

FIMCO 5303252 65 Gallon 3 Point Sprayer with 6 Roller Cast Iron

The Fimco 5303252 3-Point Sprayer is an agricultural spraying unit built around a 65-gallon holding tank. Mounted via a 3-point system, it serves property managers and operators who need to transport and distribute liquid across acreage using their existing tractor equipment.

At the center of the unit is a cast iron 6-roller pump capable of reaching up to 300 PSI. The pump flows at 9.76 GPM at 540 RPM, 8.2 GPM at 1000 RPM, and reaches a maximum speed of 1200 RPM with a maximum output rating of 21.8 GPM. This gives users substantial pressure and volume flexibility depending on operational speeds.

For targeted manual application, the setup includes a deluxe pistol grip handgun connected to a 25-foot, 3/8-inch hose. This handgun provides significant physical coverage, delivering up to 45 feet of horizontal spray distance and up to 30 feet of vertical spray height from a stationary point.

As a trade-off, this is dedicated tractor-mounted equipment that relies entirely on an operational 3-point hitch setup. The provided data does not list a broadcast boom or foldout arm assembly, meaning standard application relies primarily on the included handgun and hose.

Verdict: This sprayer is a solid match for operators seeking a large-capacity, 3-point mounted unit with high-pressure handheld reach. If you already have a compatible tractor and need strong vertical and horizontal wand spraying, it fits the bill.

• Tank Capacity: 65 Gallons
• Pump Type: 6-Roller Cast Iron
• Maximum Pressure: 300 PSI
• Flow Rate at 540 RPM: 9.76 GPM
• Flow Rate at 1000 RPM: 8.2 GPM
• Maximum Speed: 1200 RPM
• Maximum Output: 21.8 GPM
• Hose Dimensions: 25 feet, 3/8 inch
• Horizontal Spray Reach: Up to 45 feet
• Vertical Spray Reach: Up to 30 feet

A great fit if you:

• Need to haul up to 65 gallons of liquid using a tractor 3-point mount.
• Require long-distance spot spraying up to 45 feet horizontally or 30 feet vertically.
• Want a high-pressure pump reaching up to 300 PSI.

Consider something else if you:

• Do not operate equipment with a 3-point hitch.
• Need a pre-installed broad-coverage broadcast boom system.

What is the maximum pressure output of this sprayer?
The pump produces a maximum pressure of 300 PSI.

How far can the included handgun spray?
The deluxe pistol grip handgun reaches up to 45 feet horizontally and up to 30 feet vertically.

What size hose comes with the unit?
It includes 25 feet of 3/8-inch hose.
