DEWALT 20V MAX XR 10 in. Double Bevel Fixed Miter Saw (Tool

The DEWALT 20V MAX XR 10 in. Double Bevel Fixed Miter Saw brings cordless cutting performance to jobsite trim work and framing tasks. Weighing 34 pounds as a bare tool and equipped with a dedicated carry handle, it offers a portable solution for tradespeople and woodworkers who need to move between work areas without hunting for wall outlets.

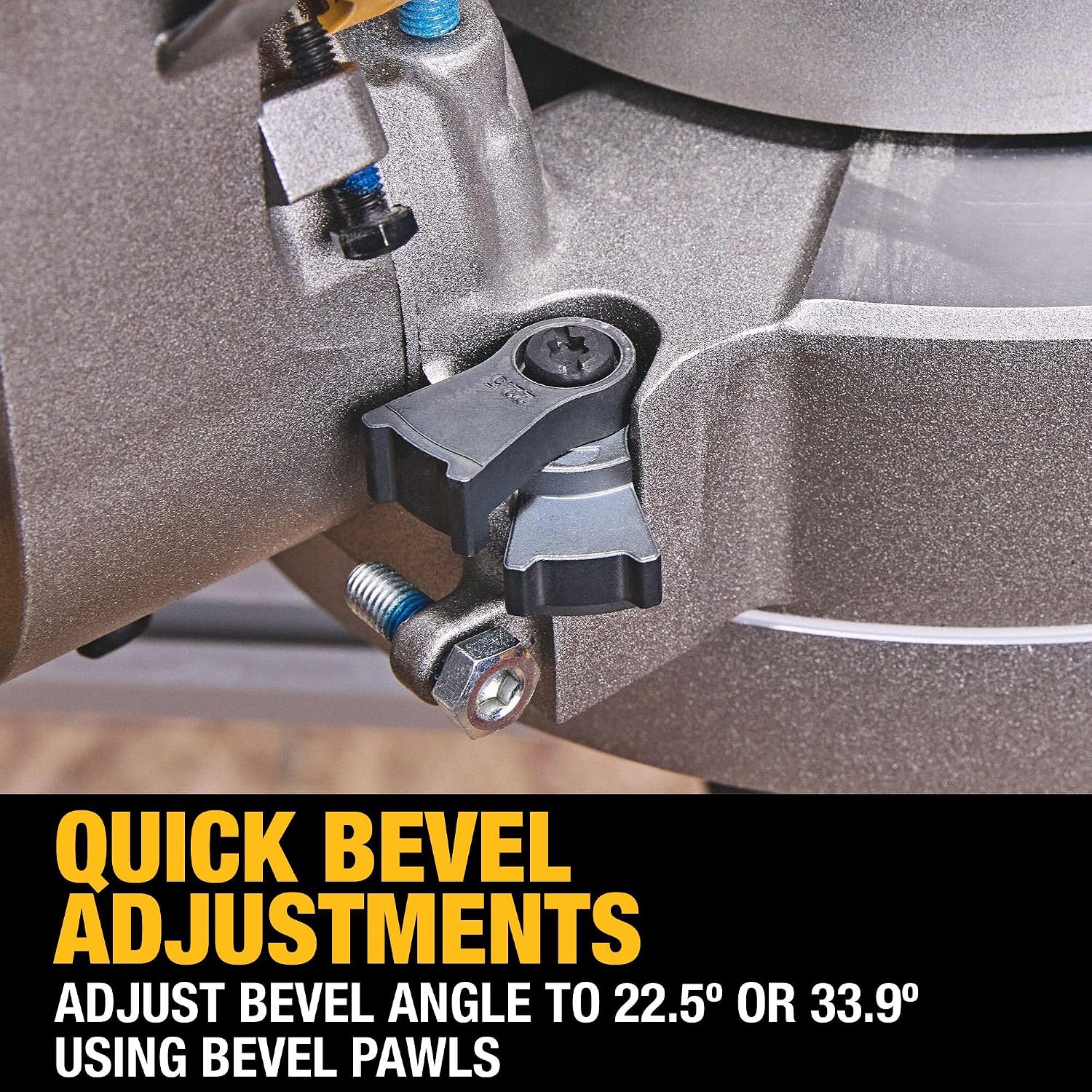

Efficiency is central to the design. The saw uses a bevel gear transmission that reduces power loss in the system, helping you get up to 434 cuts in 3-1/4 inch MDF base molding or 311 cuts in 2x4 SPF lumber per charge. For setup and alignment, the cutline blade positioning system provides adjustment-free cut line indication, while dedicated bevel pawls allow quick stops at 22.5 and 33.9 degrees.

Capacity covers standard interior trim requirements, handling up to 6 inches horizontally, 5-1/4 inches vertically for baseboard, and 5-1/4 inches for nested crown molding. It also captures up to 97 percent of dust during operation, keeping your workspace cleaner. The tool is compatible with both DEWALT 20V MAX and DEWALT FLEXVOLT battery lineups, and it supports the DEWALT Site Manager app when paired with an optional Tool Connect tag.

Trade-offs stem from its fixed design and bare-tool configuration. Because it is a non-sliding fixed saw, horizontal cut capacity is limited to 6 inches. Additionally, batteries, chargers, and the Tool Connect tag must be purchased separately if you do not already own them.

Verdict: This cordless 10-inch miter saw is an excellent choice for carpenters and contractors already invested in the DEWALT battery system who need a portable, accurate saw for trim, baseboards, and standard framing lumber.

• Blade Diameter: 10 in.
• Tool Weight: 34 lbs. (tool only)
• Horizontal Cut Capacity: Up to 6 in.
• Vertical Baseboard Capacity: Up to 5-1/4 in.
• Nested Crown Capacity: Up to 5-1/4 in.
• Preset Bevel Stops: 22.5 and 33.9 degrees
• Dust Collection Efficiency: Up to 97%
• Power Compatibility: DEWALT 20V MAX and DEWALT FLEXVOLT batteries

A great fit if you:

• Already own DEWALT 20V MAX or FLEXVOLT batteries and want a cordless miter saw.
• Regularly cut trim up to 5-1/4 inches tall or boards up to 6 inches wide.
• Need a portable saw with an integrated carry handle that weighs around 34 pounds.
• Want high dust collection efficiency and adjustment-free cutline alignment.

Consider something else if you:

• Need to crosscut boards wider than 6 inches in a single pass.
• Do not already own compatible DEWALT cordless batteries and chargers.

Does this saw come with a battery and charger?
No, this is a tool-only model. Compatible DEWALT 20V MAX and FLEXVOLT batteries are sold separately.

What is the maximum cutting capacity?
The saw can cut up to 6 inches horizontally, 5-1/4 inches for vertical baseboard, and 5-1/4 inches for nested crown molding.

How does the cutline system work?
It features an adjustment-free cutline blade positioning system that indicates the cut line directly on the workpiece.

How does the tool tracking feature work?
It is Tool Connect tag ready, which allows asset management and location tracking via the DEWALT Site Manager app when paired with a separately sold DEWALT tag.
